Veterinary Oxygen Generating System
Your location:Home > PRODUCTS > Veterinary Oxygen Concentrator > Veterinary Oxygen Generating System



Features:

✧ Longfian Animal Oxygen Generating System can eliminate the unnecessary costs of routine transportation and rental of numerous oxygen tanks.

✧ Our oxygen concentrator can provide unlimited oxygen 24 hours a day, 365 days a year, by extracting the oxygen from ambient air and producing a constant flow of medical grade oxygen.

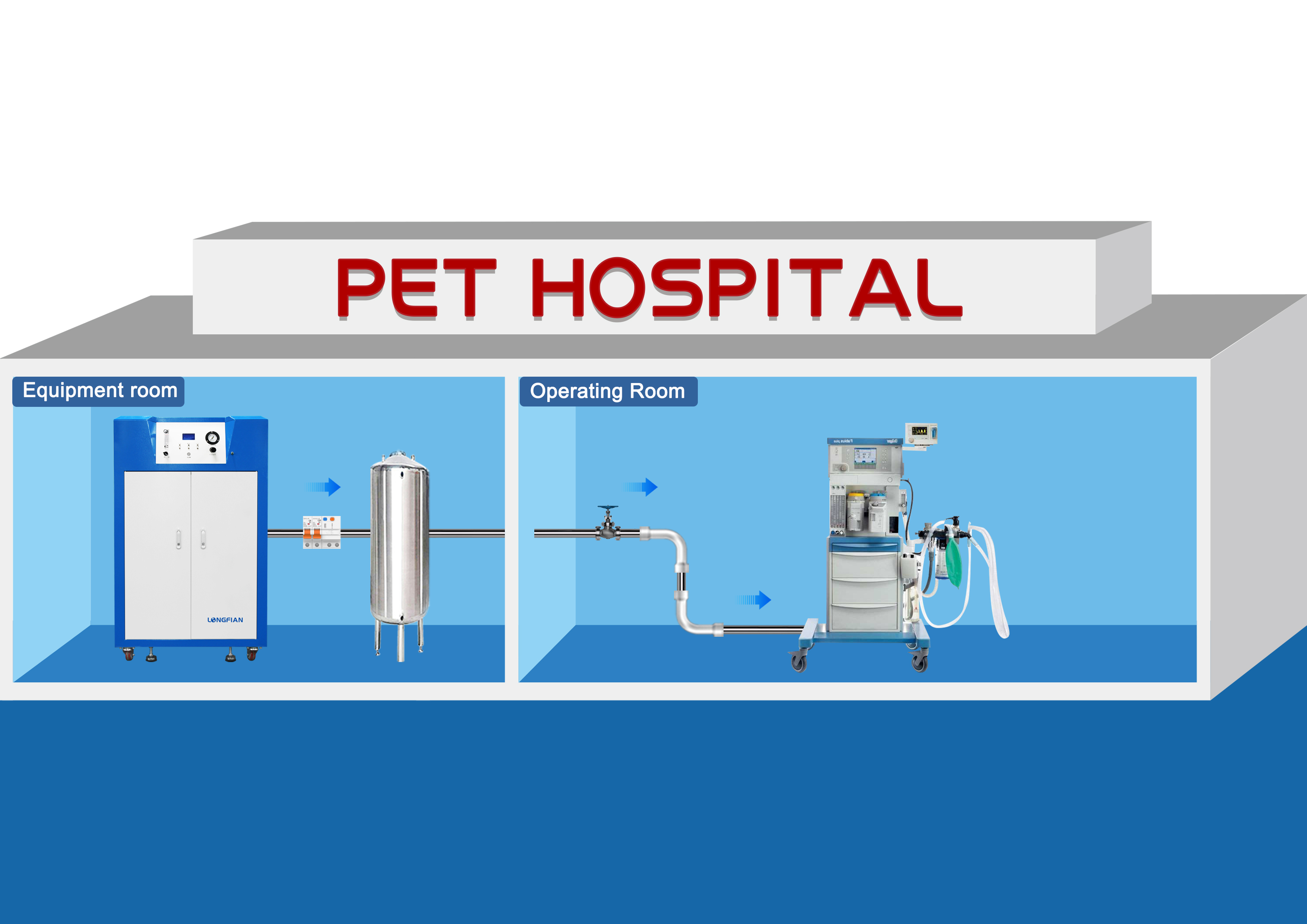

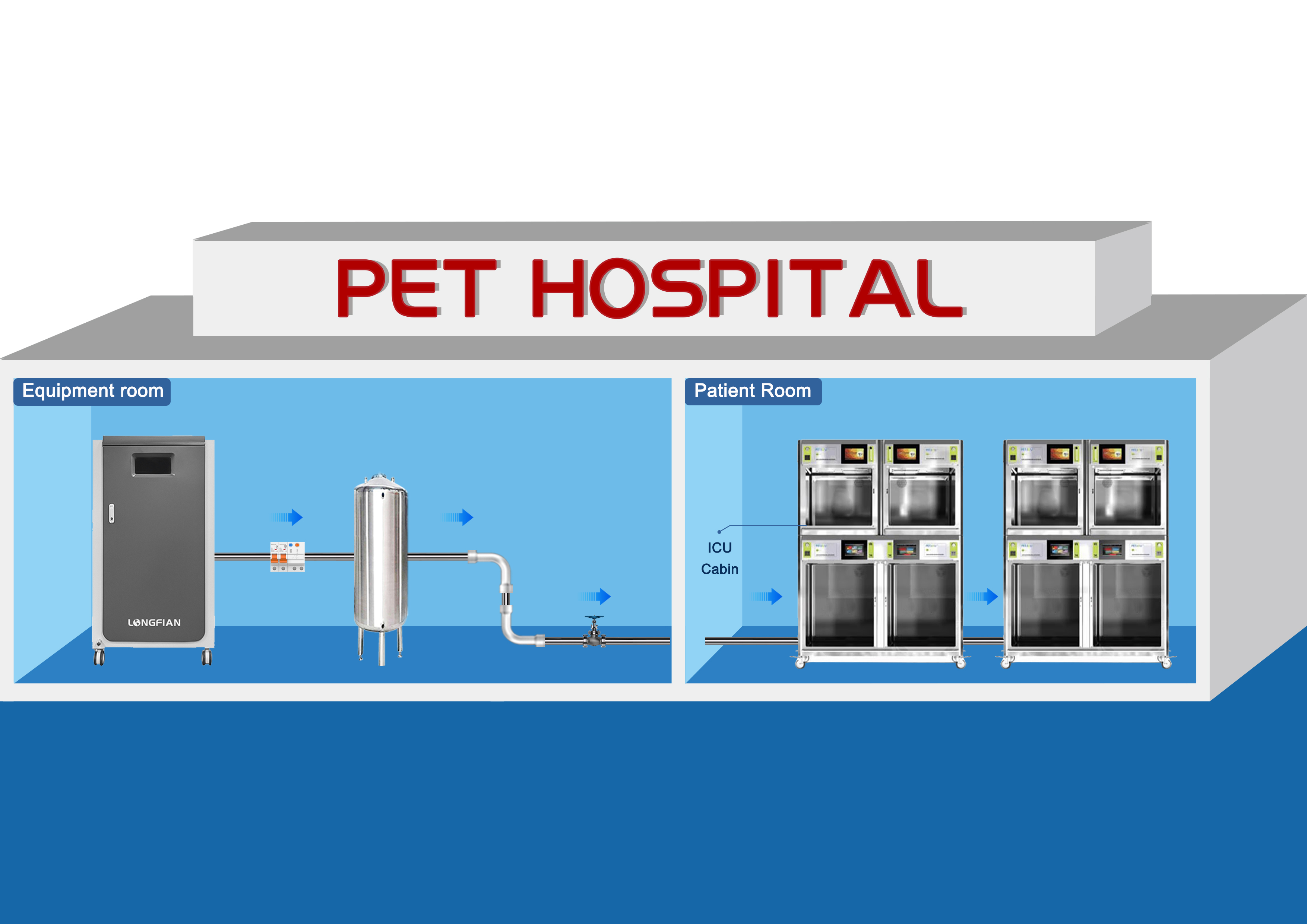

✧ Longfian oxygen concentrators are available as a large piped gas system to provide oxygen for your entire practice. We can design the perfect solution to meet your practice needs.

✧ Animal Oxygen Generating System not only offers a much needed solution to traditional cylinders in practices but it also offers substantial savings too.

✧ It is equipped with automatic start&stop function, enabling the system to start and stop automatically, not only can it save electricity, but it can also ensure that oxygen is available at any time.

✧ From the tank assemblies to the oxygen-clean brass tubing and valves, these units have been built to last. The molecular sieve – Zeolite, which separates the oxygen from the air is regenerative and should not need to be replaced for the life of the unit under normal operating conditions.

Specifications

JAY-10D ; JAY-40 ; JAY-60
Flow Rate 1-20L/min ; 1-40L/min ; 1-60L/min Net Weight 95 Kgs ; 160Kgs ; 245Kgs
Oxygen Concentration 93% (±3%)  Power Consumption ≤1100W ; ≤2200W ; ≤3300W
Outlet Pressure 6-10PSI (0.04-0.07MPA ) Input Frequency 50Hz ; 60 Hz
Sound Level ≤ 60dB  Input Voltage AC 230V± 10% ; AC110V ± 10%
Alarm

1. Power failure alarm;

2. High and low pressure alarm;

3. Low oxygen purity alarm:

   When oxygen purity is >82%, blue light illuminate;

   When oxygen purity is <82%, red light illuminate, indicating low purity;

In order to create a plan that suits the needs of your veterinary hospital or clinic, we will need to know the following:

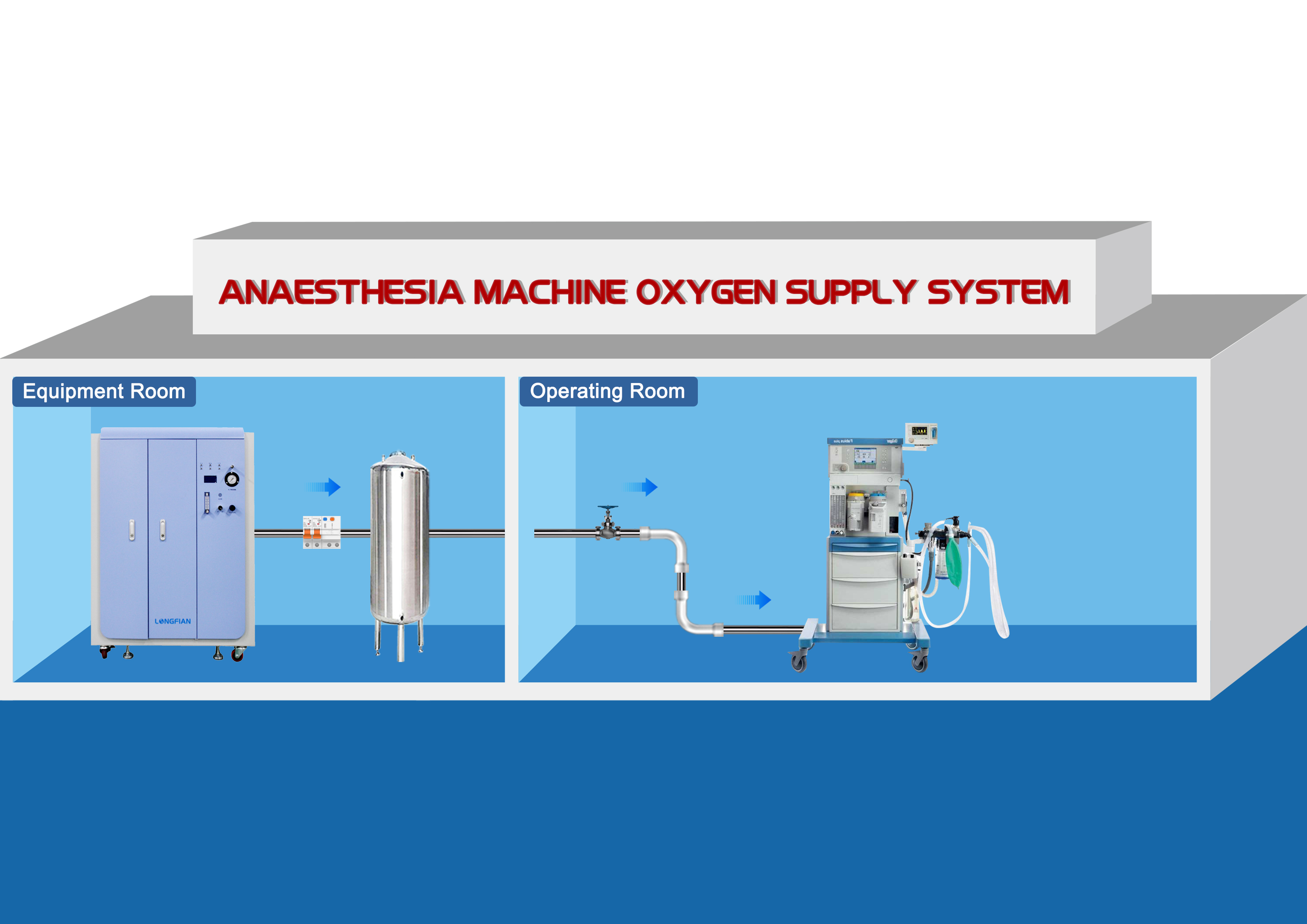

✧ What number of anesthesia machines are you operating at any one time?

✧ Will you be operating a ventilator in conjunction with an anesthesia machine(s)?

✧ What number of oxygen recovery cages and/or intensive care units will you have operating at any one time?
