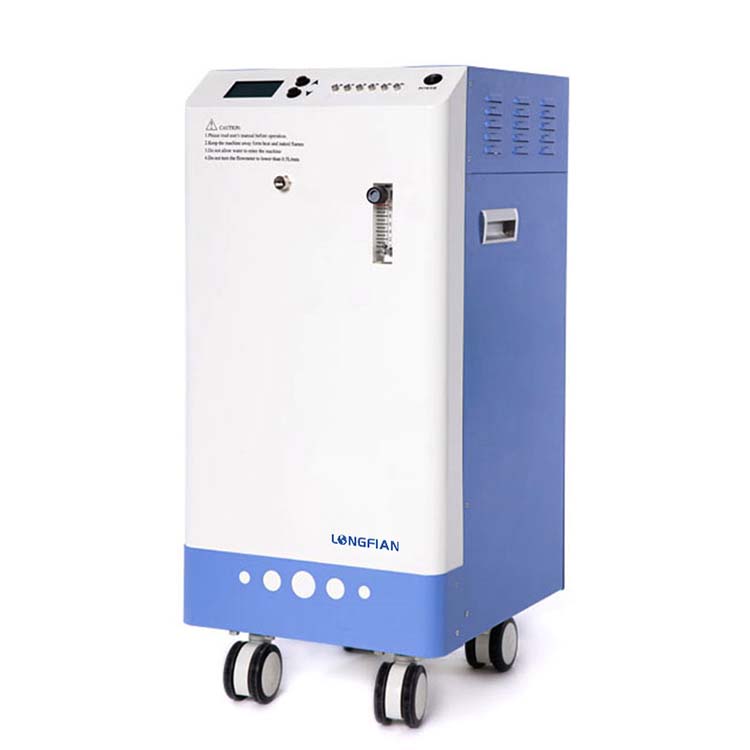

Ozone Generator

Ozone Generator
Ozone Output 8-28g/h Net Weight 41Kgs; 45Kgs; 48Kgs
Gas Flow 3.0-8.0L/min Output Connection 24h/day
High Ozone Concentration ≥ 58mg/L Input Frequency 50Hz ; 60 Hz
Storage Temperature -20℃ ~ +70℃ Input Voltage AC230V ± 10%;AC110V ±10%
Operating Temperature -10℃ ~ +60℃ Ozone Generating Method Corona discharge

✧ Adopt PSA technology to produce oxygen, the oxygen concentration is stable and reach to above 90%;

✧ Specially-selected dehumidification device, resistant to humidity in industrial applications, and delays aging time;

✧ The oxygen source increases the ozone outlet concentration by 8-10 times, greatly improves the ozone sterilization or oxidation ability, and increases

    the ozone output by 3-5 times;

✧The integrated modular oxygen production system can be used for supporting large-scale ozone generator supporting oxygen source.
