+Features
✧ Thomas compressor;
✧ High efficiency three-tower adsorption system more durable;
✧ Pressure gauge on site to asjust flexibly if necessary;
✧ Small and compact, easy to move for any emergency;
✧ Automic dehydrator/refrigerated air dryer;
Specification

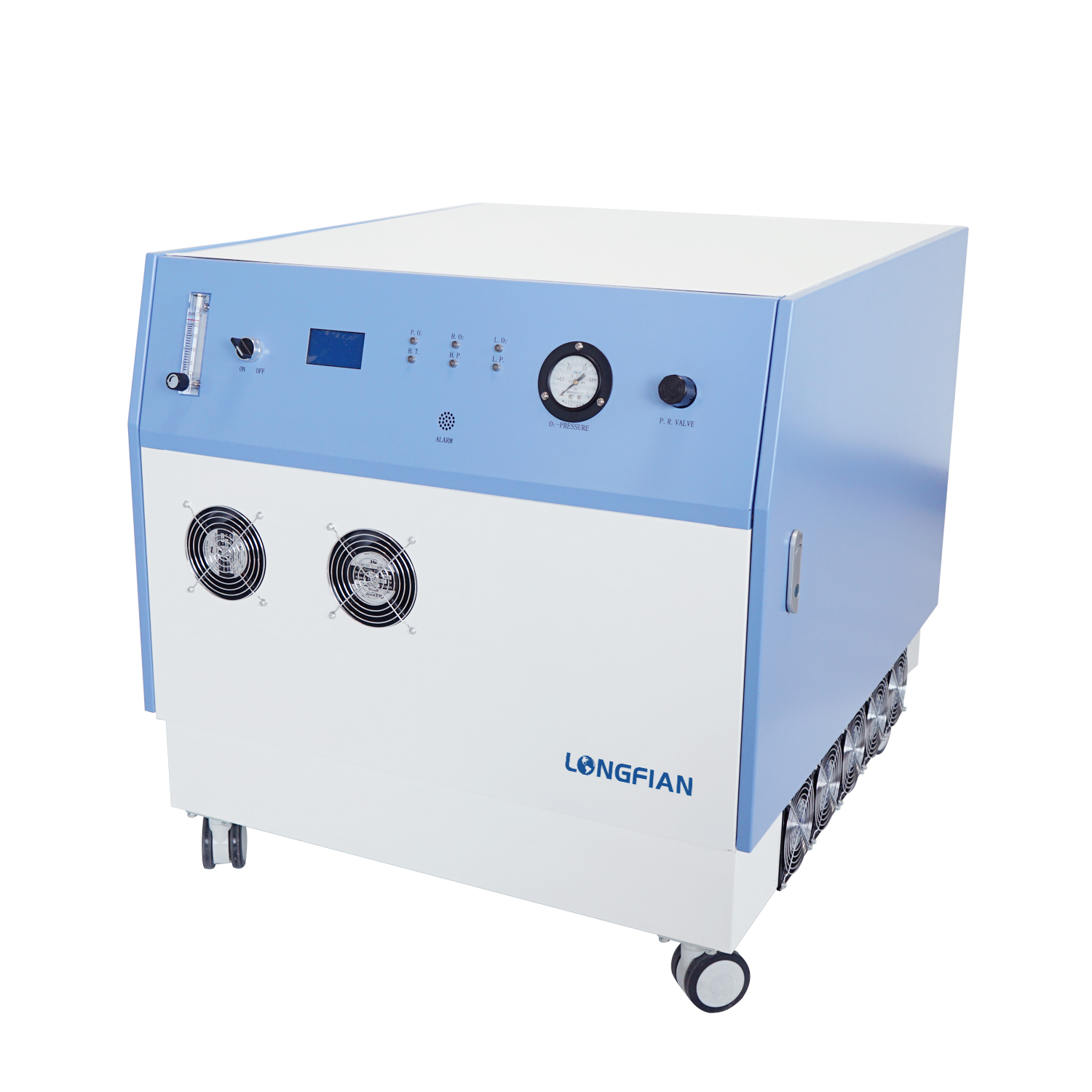

| JAY-20-4.0 | |||
| Flow Rate | 1--20 L/min | Net Weight | 149kgs |
| Oxygen Concentration | 93% (±3%) | Power Consumption | ≤2000W |
| Outlet Pressure | 20-60 PSI(0.14-0.4Mpa) | Input Frequency | 50Hz ; 60 Hz |
| Sound Level | ≤ 60dB | Input Voltage | AC 230V ± 10% ; AC110V ± 10% |
| Alarm |
1. Power failure alarm; 2. High and low pressure alarm; 3. Low oxygen concentration alarm: When oxygen purity is >82%, blue light illuminate; When oxygen purity is <82%, red light illuminate, indicating low purity; |
||
Applications
✧ Connect with ventilator and ansesthesia machine at ICU;
✧ Connected with ventilator and ansesthesia machine at operating room;
✧ Connected with hyperbaric oxygen charmber;
✧ For hospital up to 100 beds.
✧ Connected with nanobulle generator
