20-60PSI High Pressure Oxygen Concentrator
Your location:Home > PRODUCTS > 20-60PSI High Pressure Oxygen Concentrator > 20-60PSI High Pressure Oxygen Concentrator

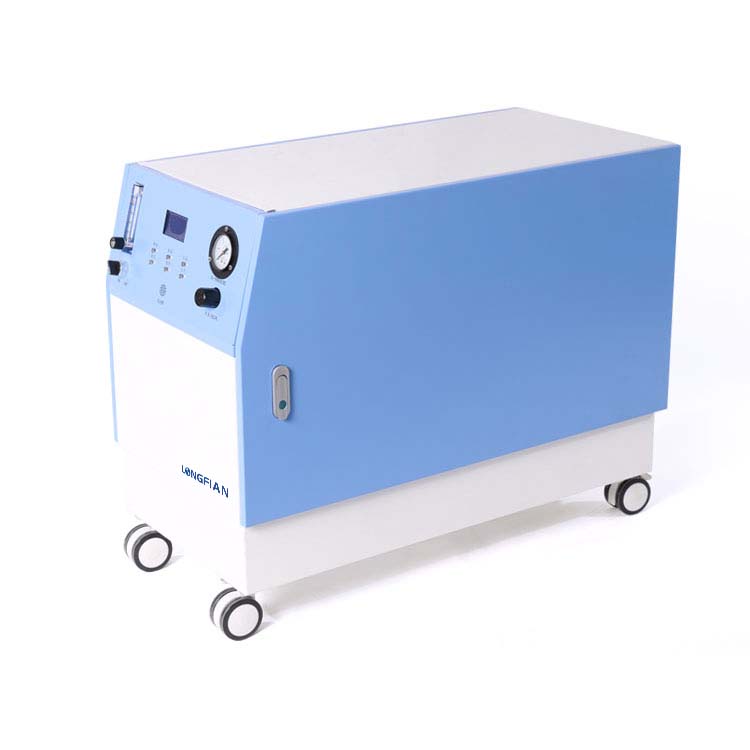

20-60Psi High Pressure Oxygen Concentrator JAY-10-4.0



Features

✧ Thomas compressor;

✧ High efficiency three-tower adsorption system more durable;

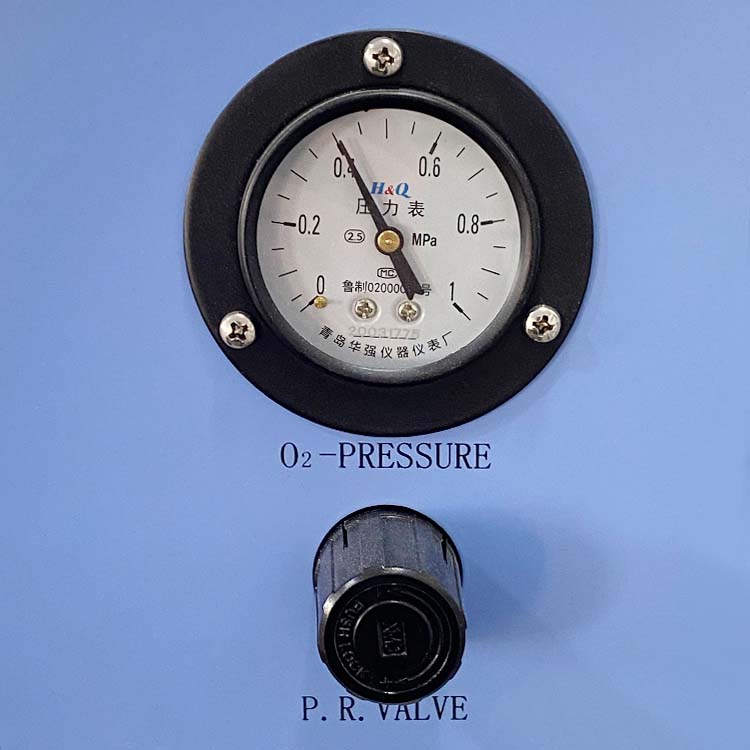

✧ Pressure gauge on site to asjust flexibly if necessary;

✧ Small and compact, easy to move for any emergency;

✧ Automic dehydrator/refrigerated air dryer;

Specification

JAY-10-4.0
Flow Rate 1--10 L/min Net Weight 90Kgs
Oxygen Concentration 93% (±3%)  Power Consumption ≤ 1250W
Outlet Pressure 20-60 PSI (0.14-0.4Mpa) Input Frequency 50Hz ; 60 Hz
Sound Level ≤ 50dB Input Voltage AC230V ± 10% ; AC110V ± 10%
Alarm

1. Power failure alarm;

2. High and low pressure alarm;

3. Low oxygen concentration alarm:

   When oxygen purity is >82%, blue light illuminate;

   When oxygen purity is <82%, red light illuminate, indicating low purity;

Applications

✧ Connect with ventilator and ansesthesia machine at ICU;

✧ Connected with ventilator and ansesthesia machine at operating room;

✧ Connected with hyperbaric oxygen charmber;

✧ For hospital up to 100 beds.

✧ Connected with nanobulle generator
