Oxygen Therapy
Your location:Home > PRODUCTS > Medical Oxygen Concentrator > Oxygen Therapy


Flow Rate

0.5-10L/min for JAY-10

Net weight 27Kgs
Oxygen Concentration 93% (±3%)  Power Consumption ≤ 880W
Outlet Pressure


Optional :10-30PSI

Input Frequency 50Hz ; 60 Hz
Sound Level ≤ 50dB  Input Voltage AC 230V ± 10%;AC 110V ±10%

1. Power failure alarm;

2. High and low pressure alarm;

3. Low oxygen concentration alarm;

    When oxygen purity is ≥82%, blue light illuminate;

    When oxygen purity is <82%, red light illuminate, indicating low purity;

✧ With medical grade oxygen concentration above 90%, better treatment effect for patients with pulmonary fibrosis;

✧ Innovative cooling technology to ensure 24/7/365 operation;

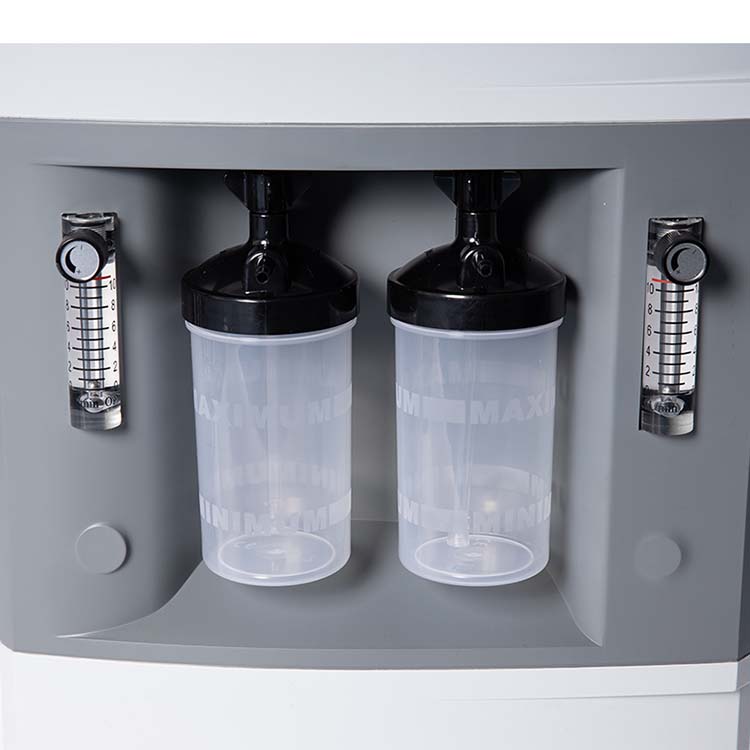

✧ Humidifier bottle with a pressure relief value of 6PSI, safer and more comfortable;

✧ Four flexible castors with two brakes, easy to move or situate in any direction, safer and more convenient;

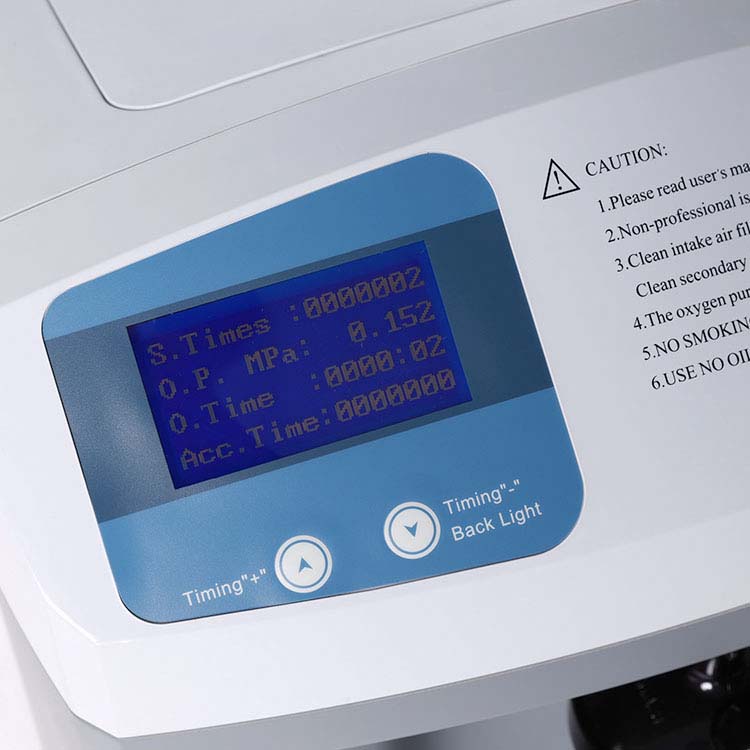

✧ Simple operation functions and easy-to-read LCD Display;

✧ Connected to HFNC, provide oxygen with stable high concentration, more comfortable;

✧ Connected to HBOC, rapidly and effectively increase the patient's SPO2;
