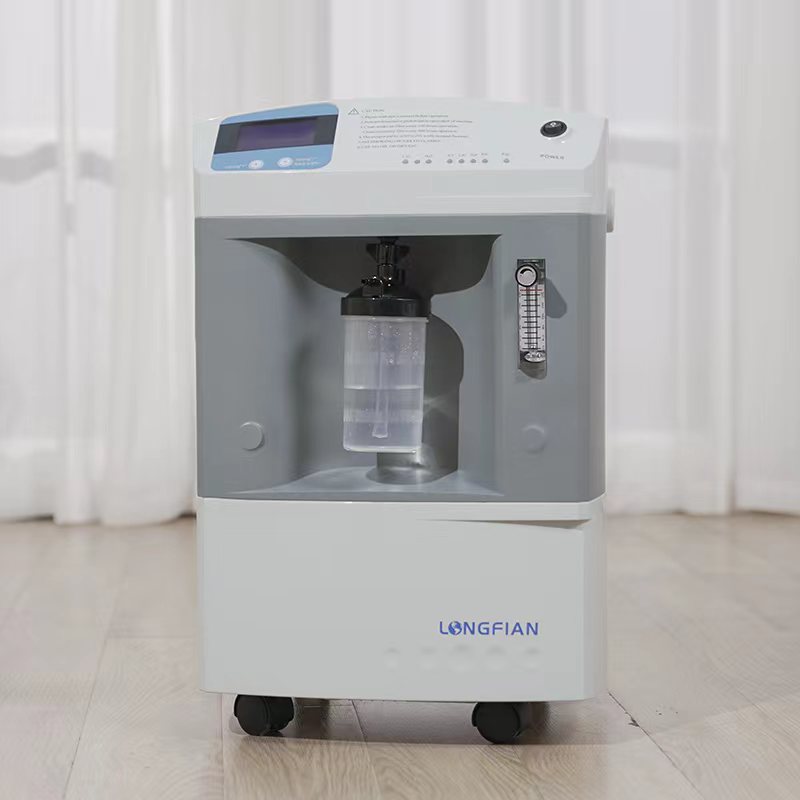

Stationary Oxygen Concentrator JAY-8 JAY-10



Features

✧ Flexibly four-wheels easy to move;

✧ The easy dial flow control, makes setting the flow easy for any patients;

✧ The indicator light clearly shows the operating status of the machine;

✧ Innovative big size LCD display convenient to view the operating parameters ;

✧ Optional function dual flow , easy to use for two patients at same time;

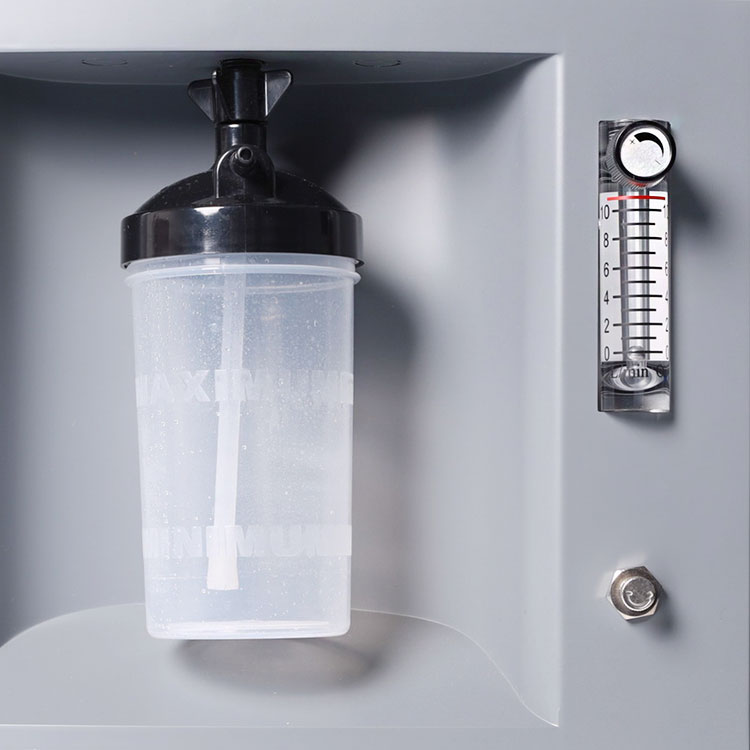

✧ US humidifier bottle with 6 PSI pressure relief valve, comfortable to inhale oxygen;

✧ The storage box at the top can conveniently place accessories such as oxygen tubes;

✧ Inner case housing adopt ceramics technique,non spray paint;

✧ Customized mute cotton make sure non pulverization phenomenon min 3 years;

✧ The inside pipeline use the medical grade silicone tube and nylon tube, more safe than industrial silicone tube and plastic tube, no pollution, no peculiar smell;

✧ Cooling system: copper tube and aluminum fins, compare with only aluminium or copper tube, better for heat dissipation and ensure the machine to continuously work for 24 hours without overheat interruption.

Specification

JAY-8 ; JAY-10; JAY-10(20PSI)
Flow Rate 0.5--8L/min; 0.5--10 L/min Net Weight 27Kgs
Oxygen Concentration 93% (±3%)  Power Consumption ≤ 880W
Outlet Pressure 6-10 PSI; 20PSI (0.04-0.07 Mpa; 0.14Mpa) Input Frequency 50Hz ; 60 Hz
Sound Level ≤ 50dB Input Voltage AC230V± 10% ; AC110V ± 10%
Alarm

1. Power failure alarm;

2. High and low pressure alarm;

3. Low oxygen concentration alarm.

Applications

✧ Oxygen therapy according to the doctor's prescription;

✧ Oxygen inhalation is vital to patients with breathing-related disorders like pulmonary disease, ARDS, pneumonia, lung injuries, bronchitis, asthma,

etc;

✧ It can be used in conjunction with HFNC, HBOC, or BIPAP.

If connected to HFNC, it provides oxygen with a stable high concentration, making it more comfortable;

If connected to HBOC, it rapidly and effectively increases the patient's SPO2;

If connected to BIPAP, this makes it convenient for COPD patients to have oxygen therapy at home.
