+Features
✧ The easy dial flow control, makes setting the flow easy for any patients;
✧ The indicator light clearly shows the operating status of the machine;

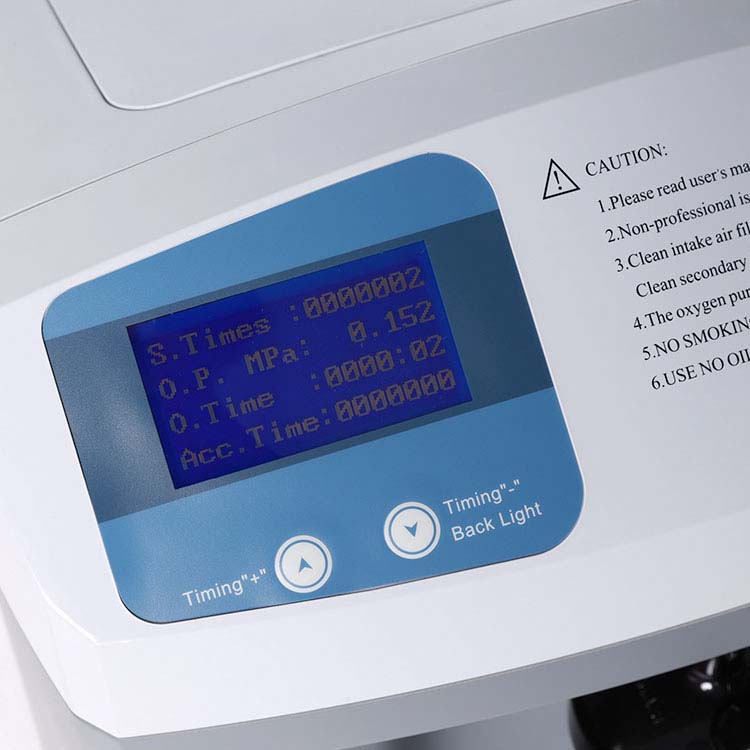

✧ Innovative big size LCD display convenient to view the operating parameters ;
✧ Optional function dual flow , easy to use for two patients at same time;

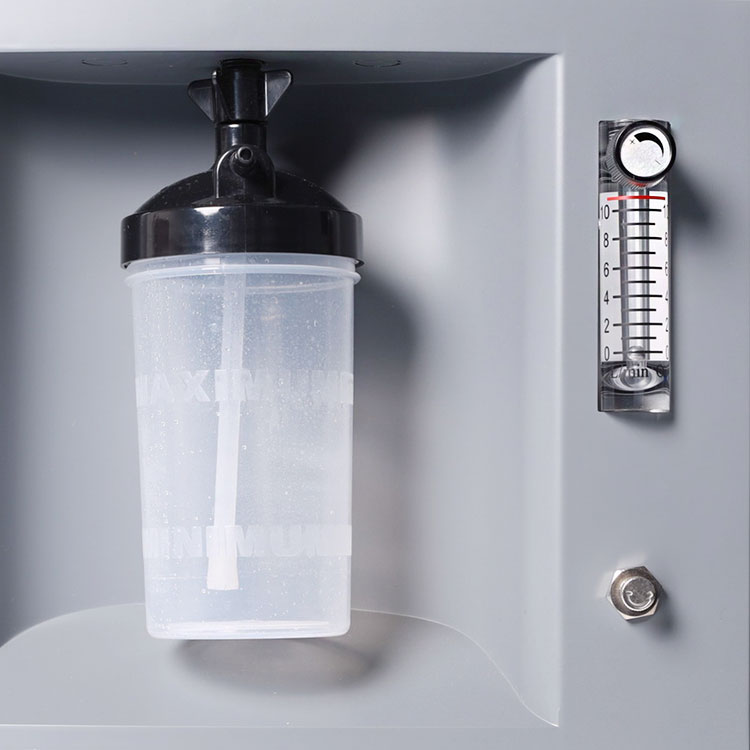

✧ US humidifier bottle with 6 PSI pressure relief valve, comfortable to inhale oxygen;
✧ The storage box at the top can conveniently place accessories such as oxygen tubes；
✧ Delivers 10LPM of 20 PSI pressure and high flow therapeutic oxygen.
Specification
| JAY-10(20 PSI) | |||
| Flow Rate | 0.5--10 L/min | Net Weight | 27Kgs |
| Oxygen Concentration | 93% (±3%) | Power Consumption | ≤ 880W |
| Outlet Pressure | 20 PSI (0.14Mpa) | Input Frequency | 50Hz ; 60 Hz |
| Sound Level | ≤ 50dB | Input Voltage | AC230V±10% ； AC110V ± 10% |
| Alarm |
1. Power failure alarm; 2. High and low pressure alarm; 3. Low oxygen concentration alarm. |
||
Applications
✧ It can provide high pressure of 20psi & creates up to 10lt/min of therapeutic oxygen making it ideal when oxygen flow is necessary;
✧ It doesn't just deliver a high level of pure oxygen, also can run a nebulizer, such as those used by asthmatic patients in hospitals, and can deliver air at a pressure of 20psi, which is twice as much as most oxygen concentrators on the market;
✧ Offering up to 10 LPM, this timeproven oxygen concentrator offers higher flow options to serve the patients in hospitals, long-term care facilities, clinics, waiting rooms, or day and night time settings;
✧ It can be used as an oxygen power source support for Hyperbaric Oxygen Therapy Chamber.
