+Features
✧ Bi-directional design;
✧ Reduced size making it less noticeable in the supply tubing;
✧ Designed to protect against oxygen tubing fires;
✧ Operate from a thermal fuse designed to stop the flow of gas in the event that the downstream oxygen tubing is ignited;
✧ Keeps patients safe;
✧ Works with all types of oxygen sources, tank, oxygen concentrator and wall connection;
✧ Kit designed for 1 oxygen source*Does NOT restrict oxygen flow unless it senses heat/fire
Specification
| Firebreak Valve | |||
| Resistance to Flow | 1 kPa @ 2 l/min | ||
| 2 kPa @ 5 l/min | |||
| 16 kPa @ 15 l/min | |||
| Flow Rate | 0.3 to 25 l/min | ||
| Max Operating Pressure | 400 kPa | ||
| Max Internal Leakage Following Activation | No leakage | ||
| Max External Leakage Following Activation | No leakage | ||
| Operating Temperature | 0 to 50 °C (32 to 122 °F) | ||
| Transit & Storage Temperature Range | -20 to 60 °C (-4 to 140 °F) | ||
| Gas Type | Oxygen / oxygen-enriched air | ||
Applications

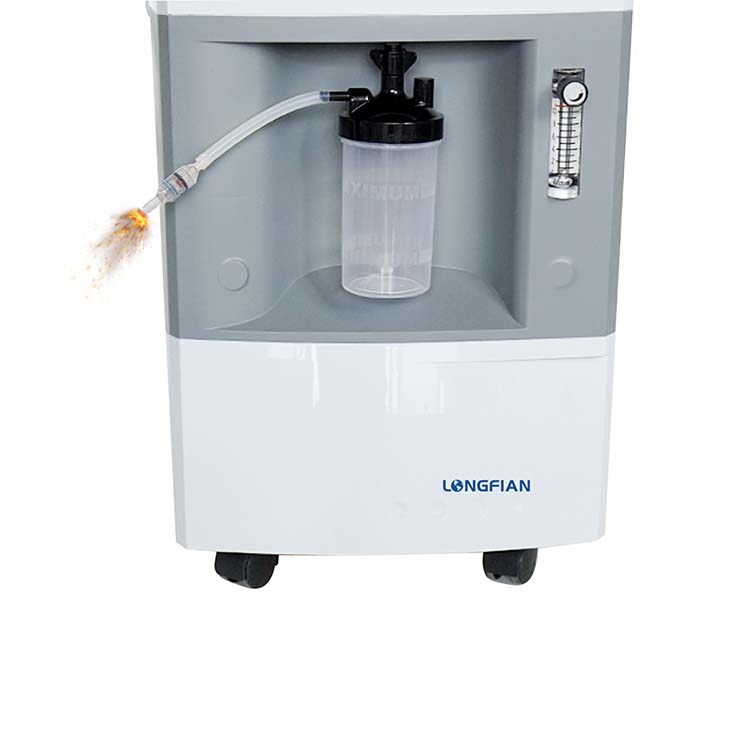

✧ With firebreak valve, you don't have to worry about the oxygen leak anymore. It can be used with all types of oxygen sources and designed to protect against oxygen tubing fires and keep patients safe.
