Oxygen Therapy
Your location:Home > PRODUCTS > Medical & Healthcare Oxygen Concentrator > Oxygen Therapy

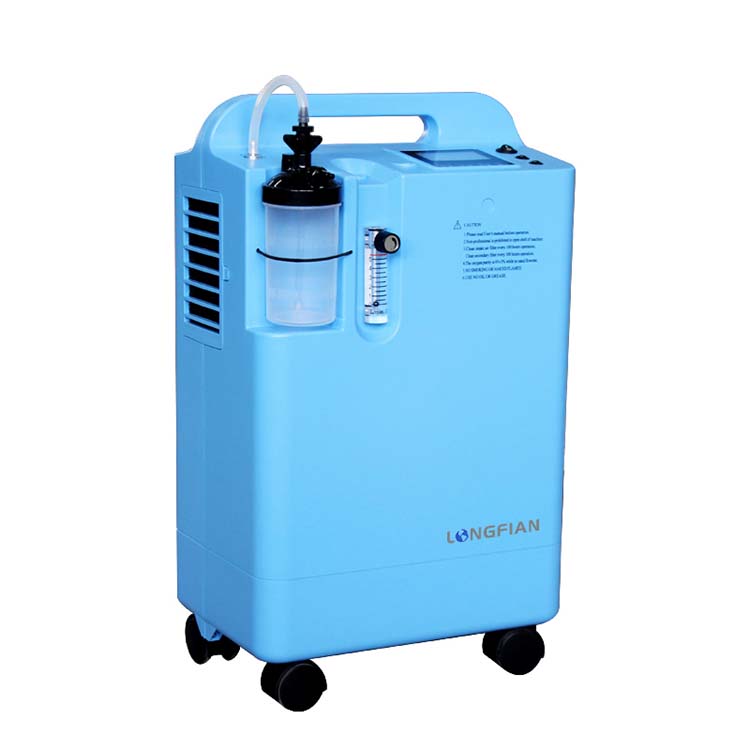

JAY-3BW JAY-5BW

JAY-3BW ; JAY-5BW
Flow Rate 0.5--3L/min ; 0.5--5L/min Net weight 16Kgs
Oxygen Concentration 93% (±3%)  Power Consumption ≤ 350W
Outlet Pressure 6-10 PSI (0.04-0.07 Mpa) Input Frequency 50Hz ; 60 Hz
Sound Level ≤ 40dB  Input Voltage AC 230V ± 10%;AC 110V ±10%
Alarm

1. Power failure alarm;

2. High and low pressure alarm;

3. Low oxygen purity alarm:

   When oxygen purity is >82%, blue light illuminate;

   When oxygen purity is <82%, red light illuminate, indicating low purity;

4. Low flow alarm

✧ Flexibly four-wheels easy to move;

✧ Filters are easy to replace and wash;

✧ The metal outlet is designed to be used with the humidifier adaptor;

✧ The easy dial flow control, makes setting the flow easy for any patients;

✧ Innovative big size LCD display convenient to view the operating parameters ;

✧ US humidifier bottle with 6 PSI pressure relief valve, comfortable to inhale oxygen;

✧ Inner case housing adopt ceramics technique,non spray paint;

✧ Customized mute cotton make sure non pulverization phenomenon min 3 years;

✧ The inside pipeline use the medical grade silicone tube and nylon tube, more safe than industrial silicone tube and plastic tube, no pollution, no peculiar smell;

✧ Cooling system: copper tube and aluminum fins, compare with only aluminum or copper tube, better for heat dissipation and ensure the machine to continuously work for 24 hours without overheat interruption.
