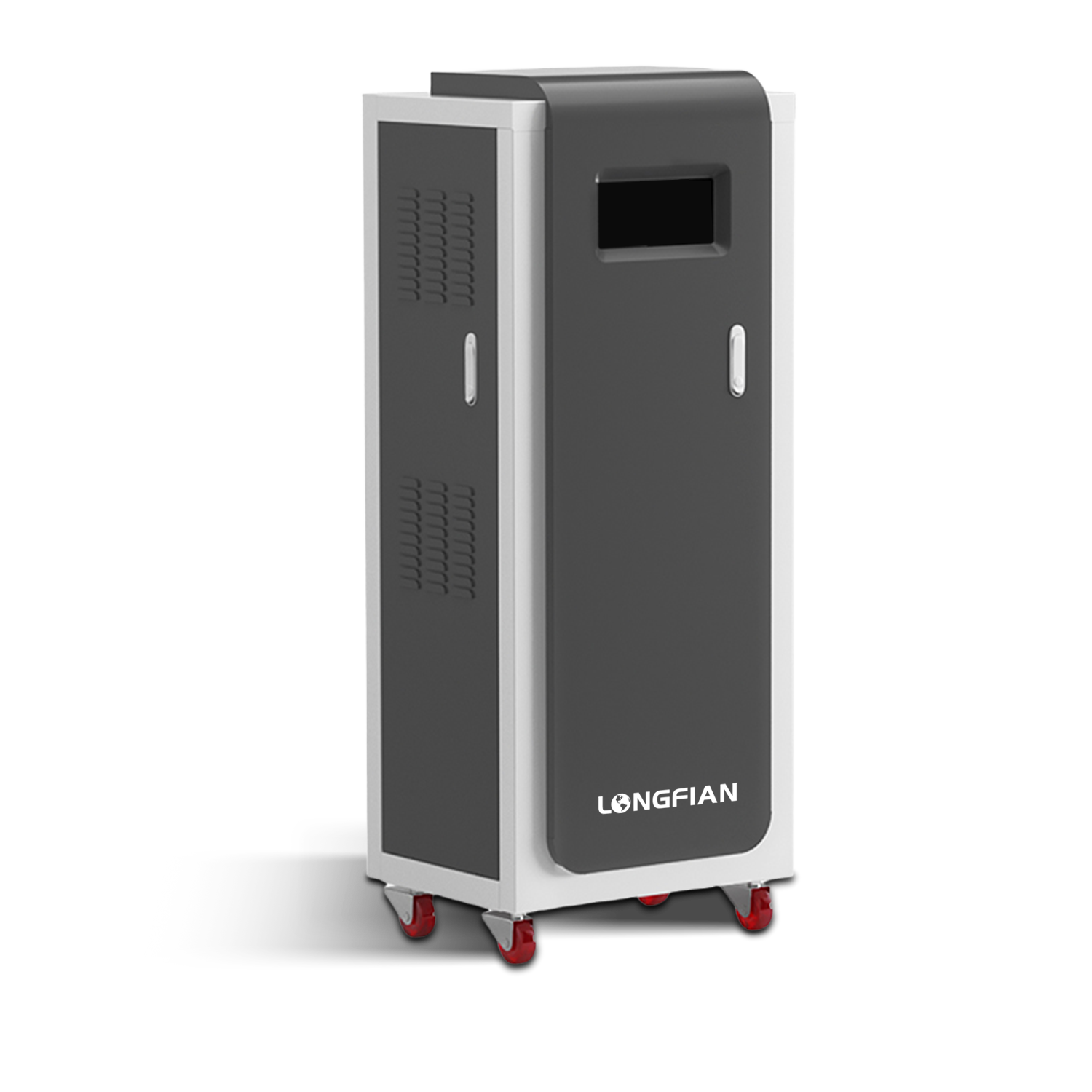

200-600L Hypoxic Generator

200-600L Hypoxic Generator

Hypoxia training; Concentration 9%-18%; Simulated altitude 0-6500m; Castor

Product Parameters

 JAY-20H

Hypoxic Flow Hypoxic Concentration Sound Level Power Consumption
200LPM 9%-18% ≤55dB ≤1100W



Outlet Pressure Simulated Altitude Net Weight Dimension
6-10Psi (0.4-0.7Bar) 0-6500m (0-21,325ft) 95Kgs 600*400*1380mm


JAY-40H

Hypoxic Flow Hypoxic Concentration Sound Level Power Consumption
400LPM 9%-20.9% ≤58dB ≤2200W



Outlet Pressure Simulated Altitude Net Weight Dimension
6-10Psi (0.4-0.7Bar) 0-6500m (0-21,325ft) 160Kgs 760*540*1380mm

JAY-60H

Hypoxic Flow Hypoxic Concentration Sound Level Power Consumption
600LPM 9%-20.9% ≤60dB ≤3300W



Outlet Pressure Simulated Altitude Net Weight Dimension
6-10Psi (0.4-0.7Bar) 0-6500m (0-21,325ft) 245Kgs 760*540*1960mm

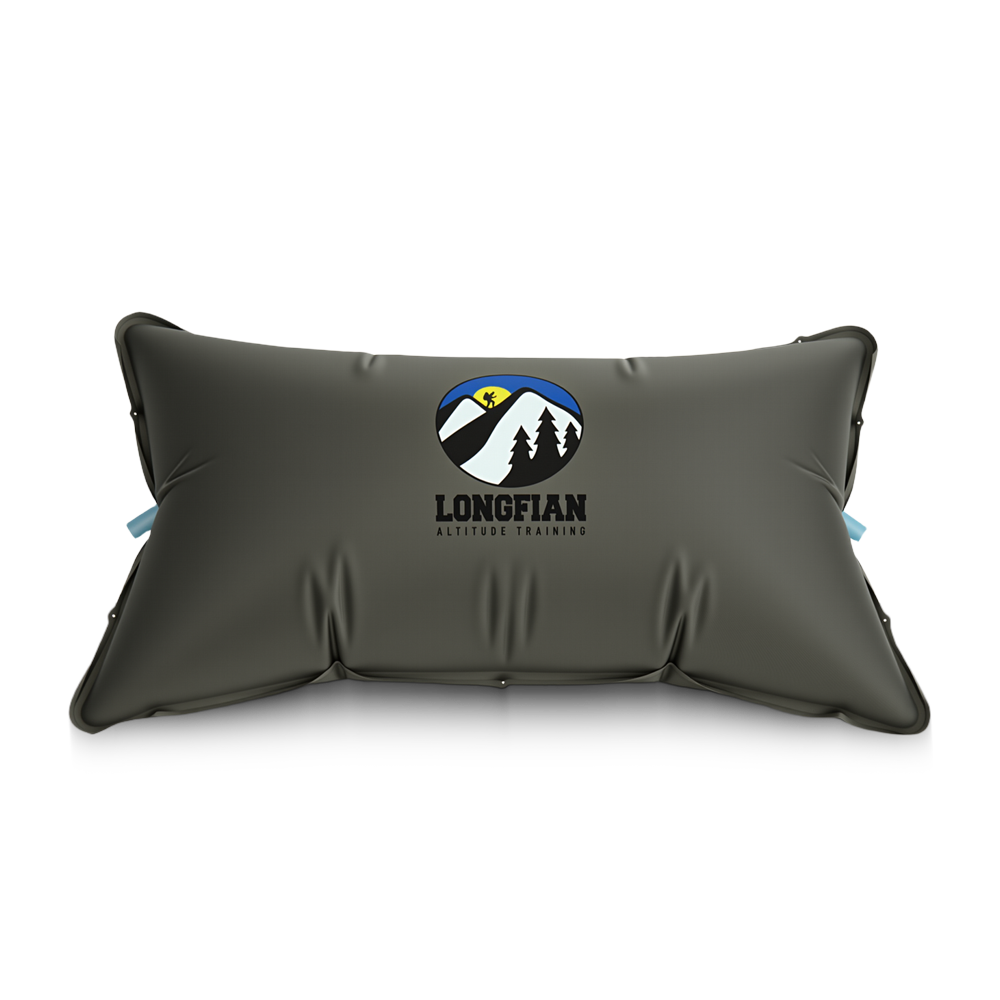

Hypoxic Generator Buffer Reservoir Bag

Folded; 120L Resevior Bag; Large inlet&outlet

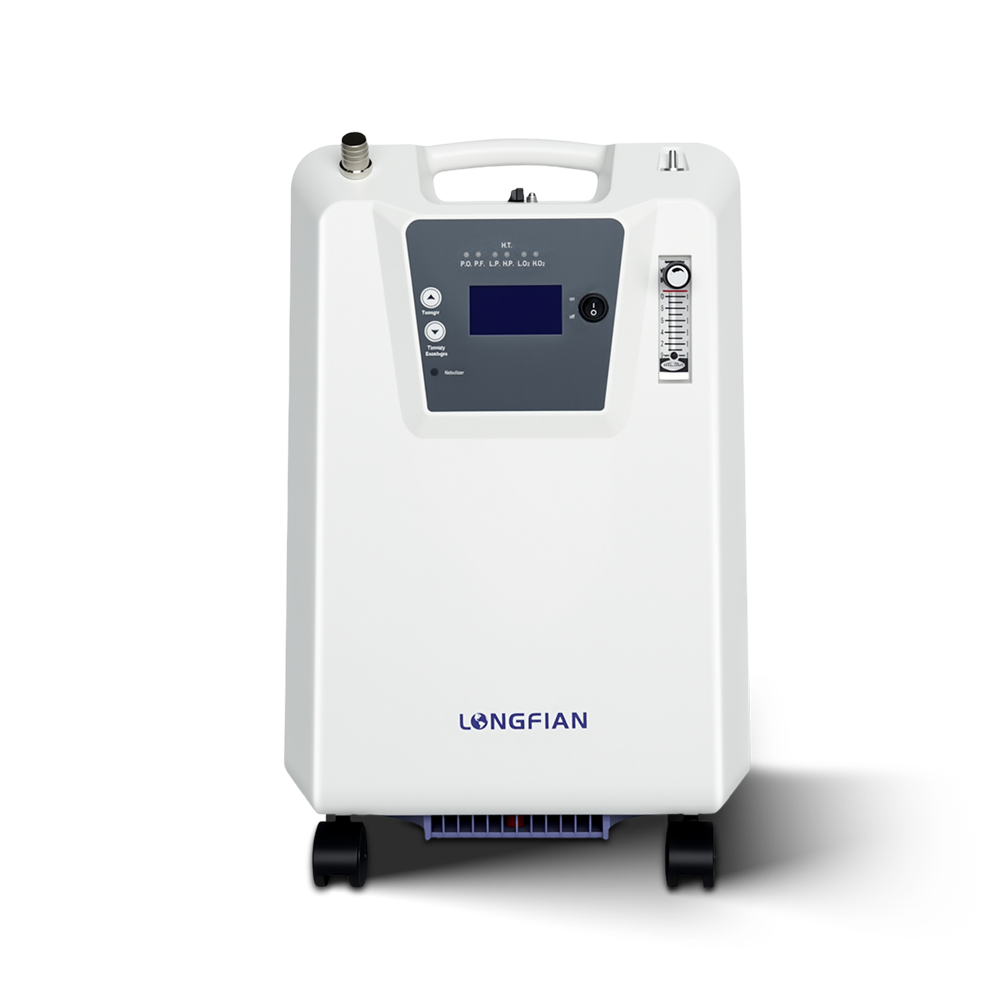

100L Hypoxic Generator JAY-10FW-H

100LPM; Hypoxia training; Concentration 9%-18%; Simulated altitude 0-6500m; Castor
