+Features
✧ 20-60 Psi outlet pressure ensure to connect with ventilator and the anesthesia machine;

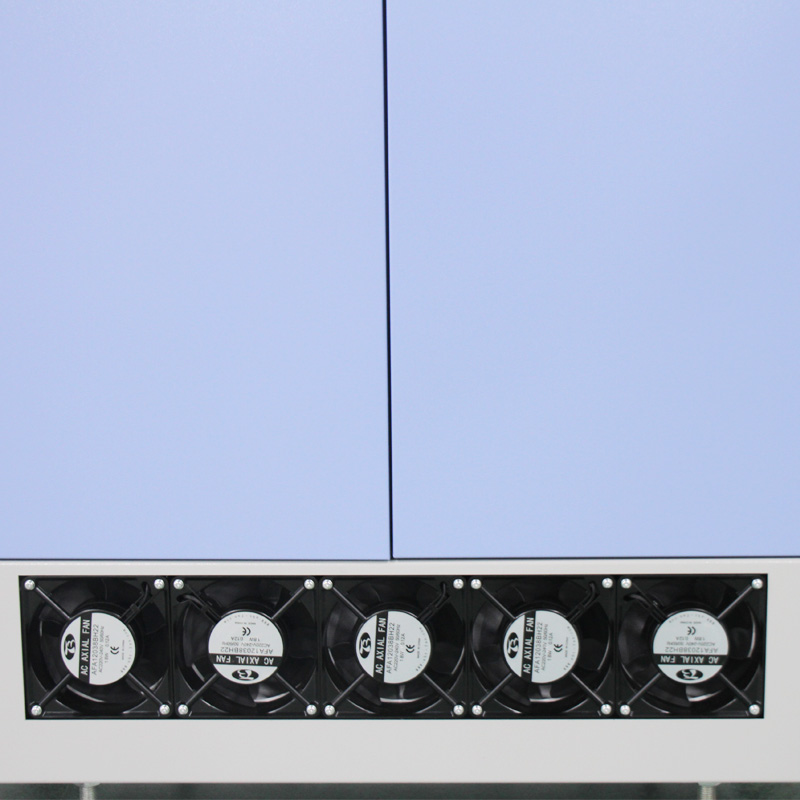

✧ Seven sets of fans ensure the machine's operating temperature and more conducive to heat dissipation;
✧ The metal oxygen outlet supports the connection of various oxygen tubes;
✧ Two sets of filters easy to maintain the oxygen generator;
✧ Four big wheels easy to move flexibly;
✧ Optional connecting with oxygen tank from 200-3000L;
✧ Medical Use: Connect with ventilator or anaesthesia machine in small hospitals;
✧ The machine is equipped with a cold dryer to ensure the stability of the machine.
Specifications
| JAY-15-4.0 ; JAY-20-4.0 | |||
| Flow Rate | 1--15 L/min ; 1--20 L/min | Net Weight | 118kgs |
| Oxygen Concentration | 93% (±3%) | Power Consumption | ≤2000W |
| Outlet Pressure | 20-60 PSI(0.14-0.4Mpa) | Input Frequency | 50Hz ; 60 Hz |
| Sound Level | ≤ 60dB | Input Voltage | AC 230V ± 10% ; AC110V ± 10% |
| Alarm |
1. Power failure alarm; 2. High and low pressure alarm; 3. Low oxygen purity alarm: When oxygen purity is >82%, blue light illuminate; When oxygen purity is <82%, red light illuminate, indicating low purity; |
||
Applications
✧ Connected with ventilator and anaesthesia machine at ICU;
✧ Connected with ventilator and anaesthesia machine at operating room;
✧ Connected with hyperbaric oxygen chamber;
✧ For hospital with 50-100 beds.
