Veterinary Oxygen Therapy
Your location:Home > PRODUCTS > Veterinary Oxygen Concentrator > Veterinary Oxygen Therapy

VET-5KW VET-10



Features

✧ Using molecular sieve pressure swing adsorption principle, using air as raw material, physical oxygen production, eliminating the trouble of daily tank changing and inflation;

✧ One machine with multiple functions, to meet the needs of animal anesthesia machines for oxygen supply, postoperative oxygen supply, ICU oxygen supply, and emergency oxygen supply;

✧ With high outlet pressure, it can be connected to a cage and can be used as an anesthetic gas source for small animals less than 7kgs, such as cats and dogs;

✧ It meets the various clinical demands of veterinarians, and is widely applicable to the oxygen supply for veterinary clinic surgery, post-operation, ICU and emergency;

✧ Oxygen is supplied according to the time set by the user, and the oxygen production program is automatically stopped.

Specification

VET-5KW ; VET-10
Flow Rate 0.5--5L/min ; 0.5--10L/min Net weight 15Kgs ; 27Kgs
Oxygen Concentration 93% (±3%)  Power Consumption ≤ 350W ;  ≤ 880W
Outlet Pressure 6-10 PSI (0.04-0.07 Mpa) Input Frequency 50Hz ; 60 Hz
Sound Level ≤ 40dB; ≤ 50dB Input Voltage AC230V ± 10%;AC110V ±10%
Alarm

1. Power failure alarm;

2. High and low pressure alarm;

3. Low oxygen concentration alarm:

   When oxygen purity is >82%, blue light illuminate;

   When oxygen purity is <82%, red light illuminate, indicating low purity;

Applications

✧ Oxygen Therapy: Animal wears an oxygen mask connected to an oxygen concentrator to inhale oxygen directly for treatment of some respiratory disease.

✧ Nebulizer Function: Longfian oxygen concentrator can be equipped with nebulizer function for animals to do nebulizer therapy. One device serves multiple functions, which greatly facilitates the operation.

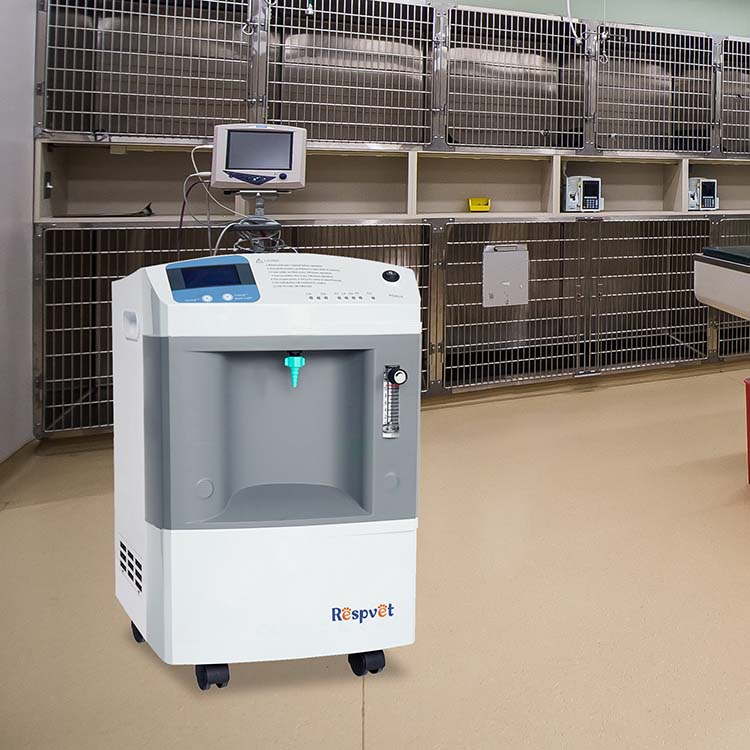

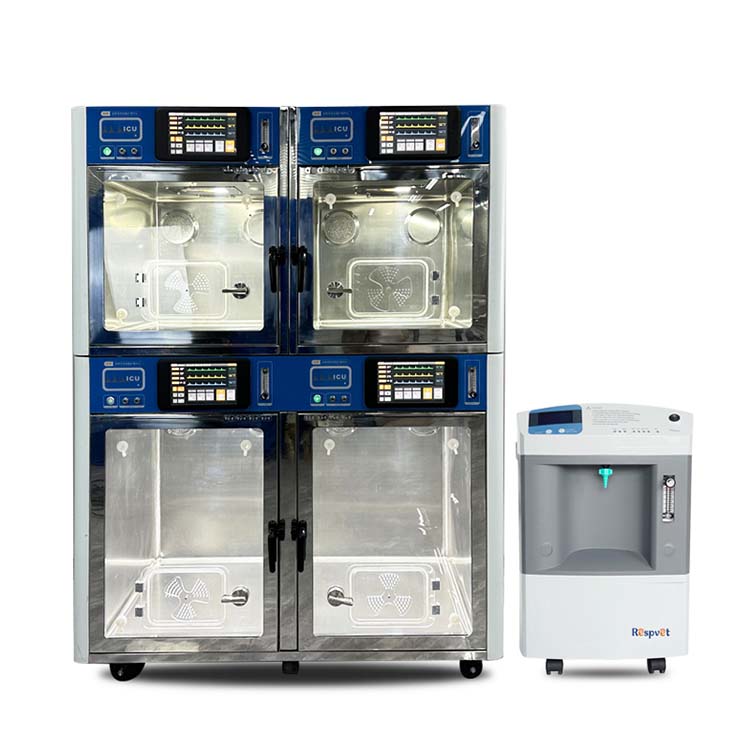

✧ In ICU and Oxygen Chamber: The oxygen concentrator provides continuous oxygen source to ICU or oxygen chamber.

✧ Anaesthesia: During the surgery of the sick pets, providing the anaesthesia machine stable and timely oxygen source through the oxygen concentrator, which greatly guarantees the smooth progress of the surgery.
